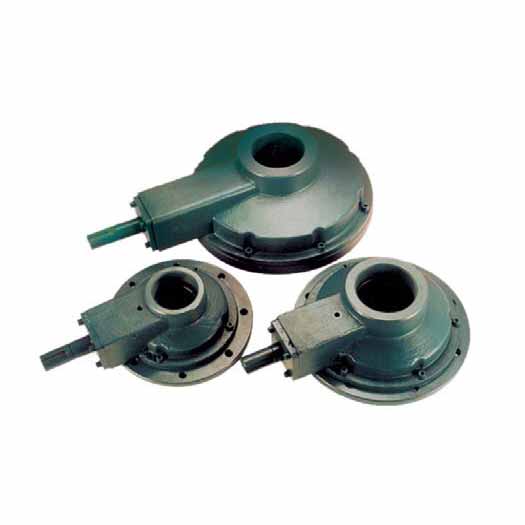

CB Series of Bevel Gear Operators

Range of product: ANSI:(CBA) DIN:(CB) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：

●Multi-turning type drive device suitable for gate valve, stop valve， and other types of valves.

●Allowable output torque range:996~4000LBF.FT

●Using tooth scarf joining type connection valve; flange connection should be designed and produced

according to ISO52100/MSS SP-101 standatd.

●Material used for gear body and cover is cast iron.

Product range：

Standards

Series Type

SizeRange

ANSI

CBA

CBA107-CBA307

DIN

CB

CB107-CB307

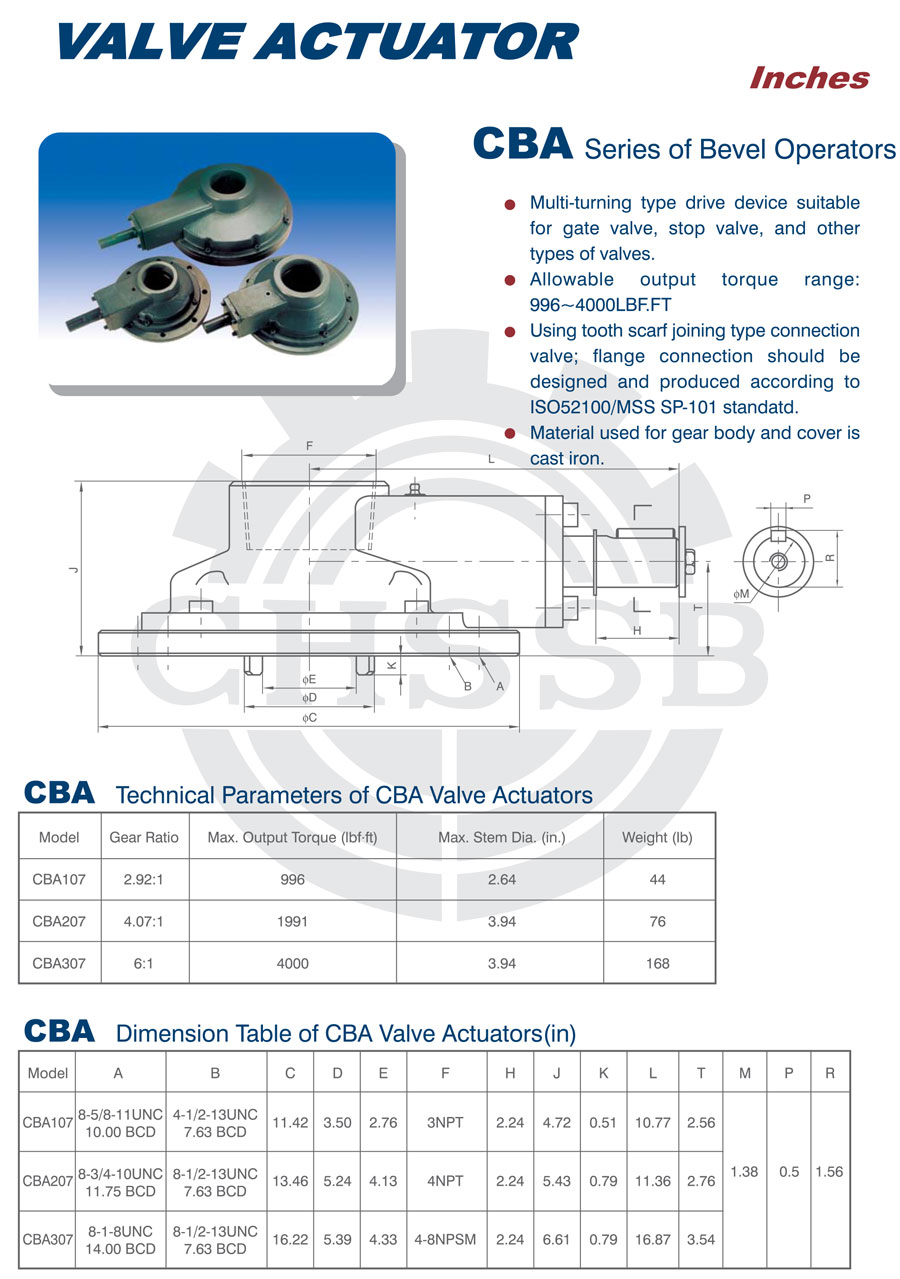

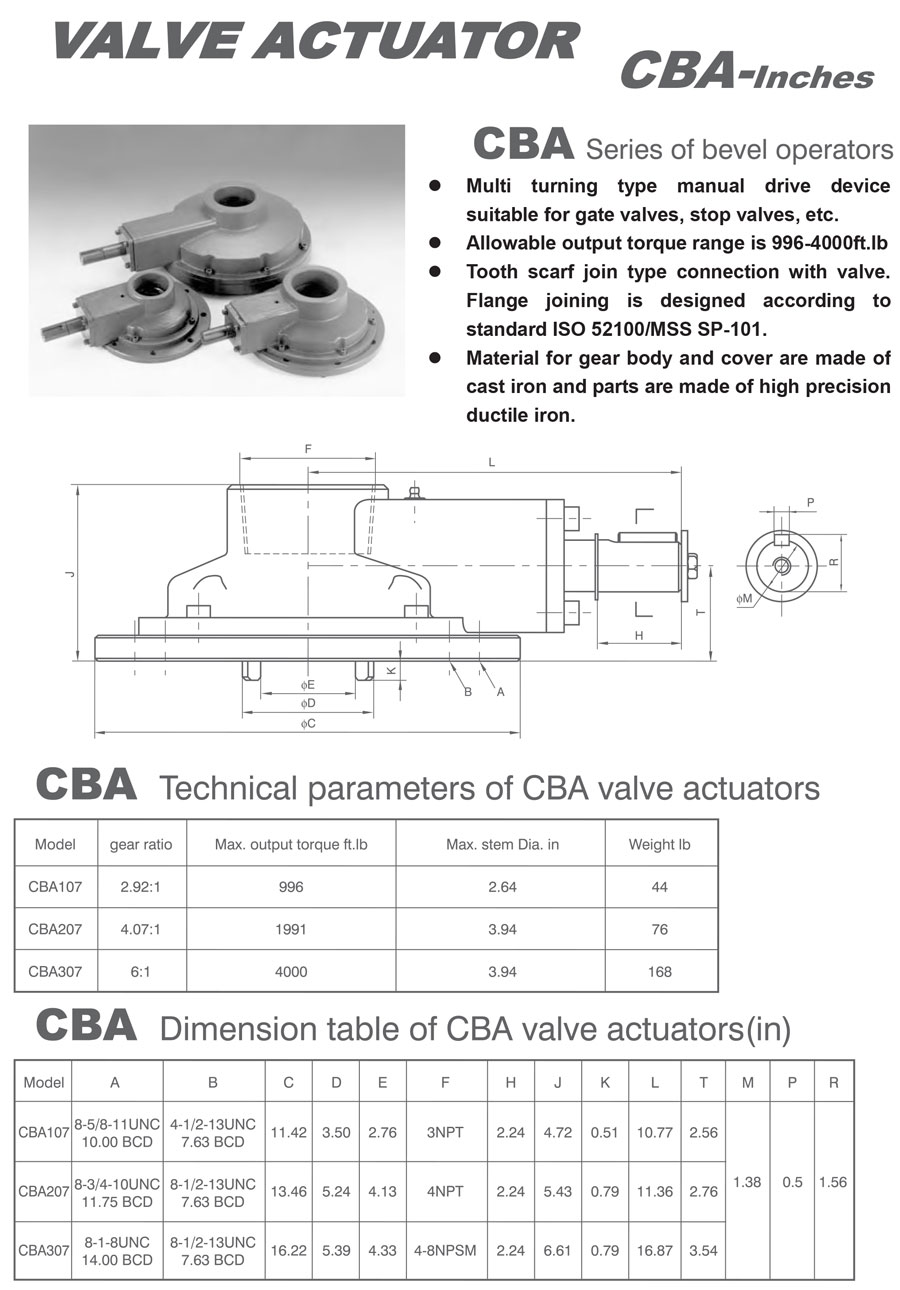

ANSI Catalog:

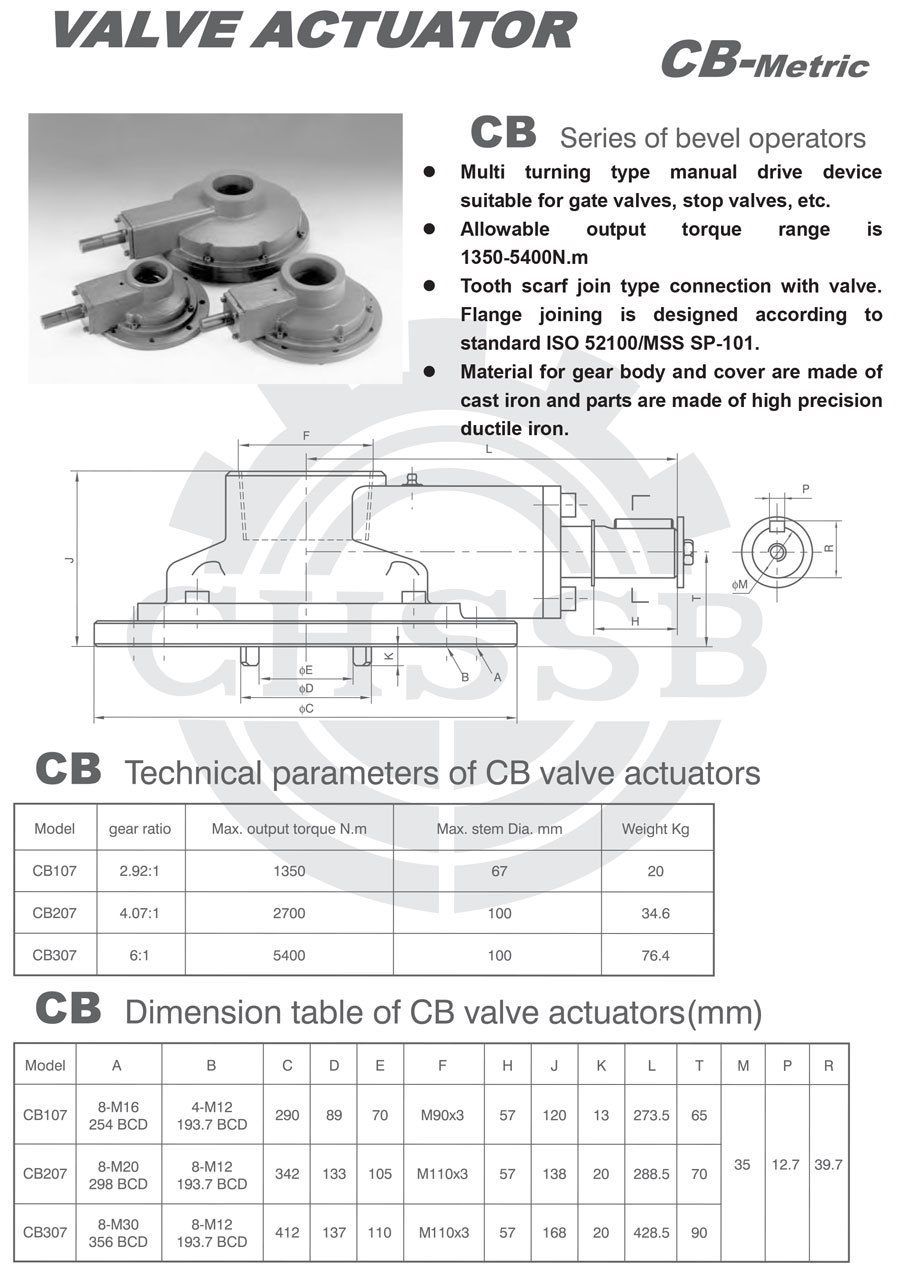

DIN Catalog:
