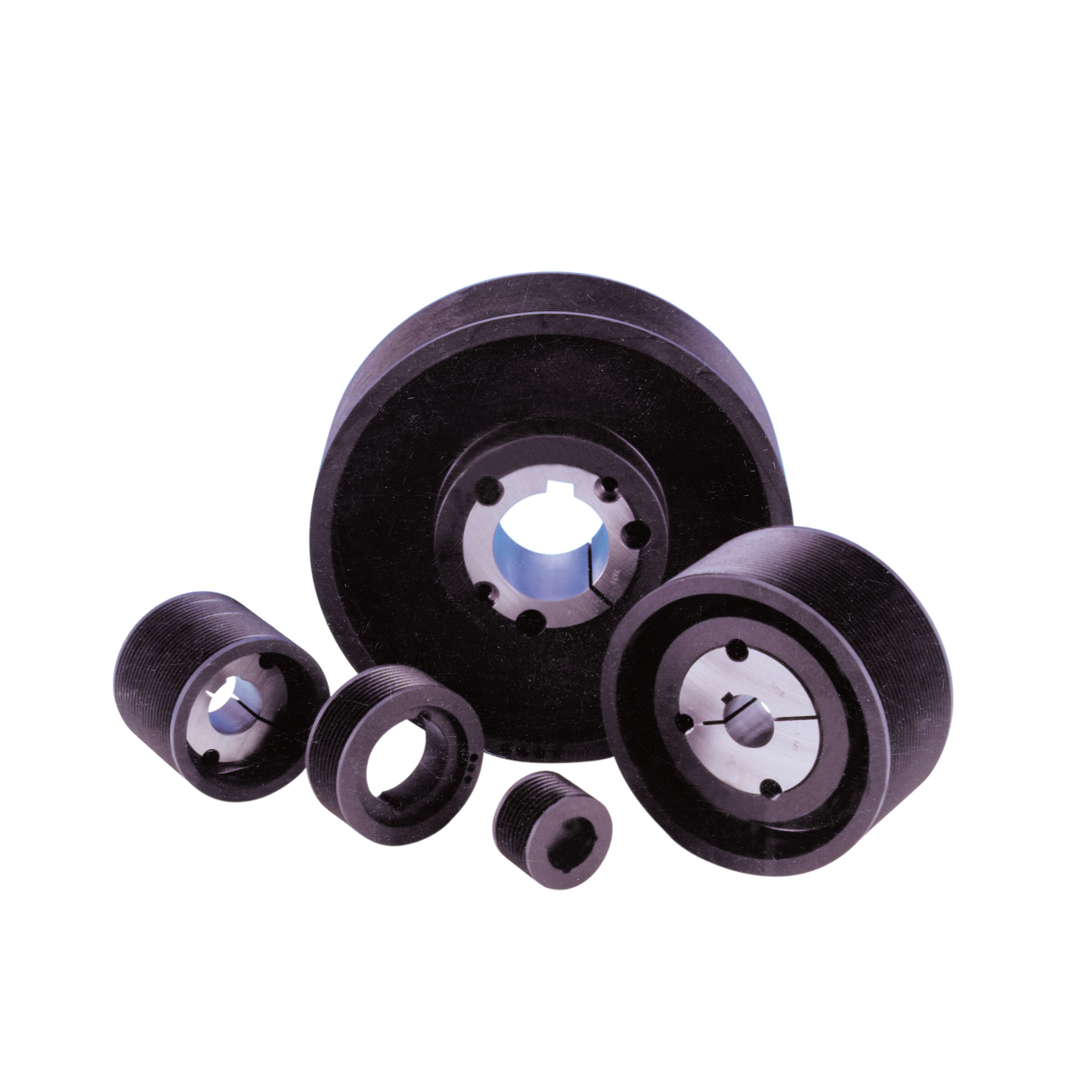

BTL Multi-Wedged Poly-V Sheaves

Range of product: ANSI:(J3/J4/J5/J6/J8/J12/J16/J20/L5/L6/ L8/L10/L12/L16/L20/M6/M10/M16/M20) Inch size product (Apply to ANSI market) BTL Multi-Wedged Poly-V Sheaves

Product Details

Parameters Introduction：

NSPT supplies the whole series of Multi-Wedged Pulleys (J3-M20) from DP 20mm to710mm.The pulleys

are available in standard straight and in taper lock bores.
Multi-Wedged Pulleys are made of GG25, GGG45,S45C or other materials requested by the customers.

The pulleys are machined by high precise CNC, dynamically balanced and black coated. They have the

characteristics of high precision, steadiness and smooth transmission. They are suitable for all kinds of

precise, high speed and heavy loaded transmission equipments. They can also be used on auto motors.
NSPT can provide specially designed Multi-Wedged Pulleys according to customers' requests.

Product range：

Standards

Series Type

SizeRange

ANSI

J3

3J08S-3J80TB

J4

4J08S-4J124TB

J5

5J08S-5J124TB

J6

6J08S-6J124TB

J8

8J08S-8J160TB

J12

12J13S-12J160TB

J16

16J18S-16J160TB

J20

20J18S-20J160TB

L5

5K31TB-56160TB

L6

6L31TB-6L160TB

L8

8L30TB-8L250TB

L10

10L30TB-10250TB

L12

12L30TB-12L250TB

L16

16L33TB-16L250TB

L20

20L52TB-20L250TB

M6

6M71TB-6M250TB

M10

10M71TB-10M280TB

M16

16M71TB-16M280TB

M20

20M71TB-20M280TB

ANSI Catalog：ANSI BTL Multi-Wedged Poly-V Sheaves.pdf
