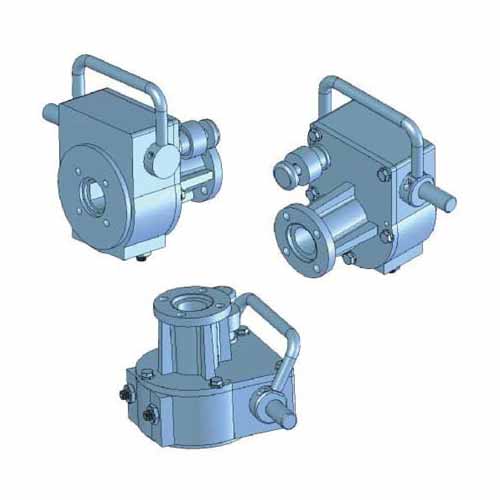

CLG Series of Bevel Gear Operators

Range of product: ANSI:(CLGA) DIN:(CLG) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：

●90 degree turning clutching drive device which can perform manual or pneumatic drives suitable for ball

valve， butterfly valve, cock valve, etc.

●Allowable output torque range is 147-15000N.m

●The dimensions connected with the valve are designed according to IS05211/MSS SP-101.

●Loaded with grease inside the gear body,shell sealed for waterproof protection with a grade of IP65 which

can be used either inside or out in open air.

Product range：

Standards

Series Type

SizeRange

ANSI

CLGA

CLGA1-CLGA140

DIN

CLG

CLG1-CLG140

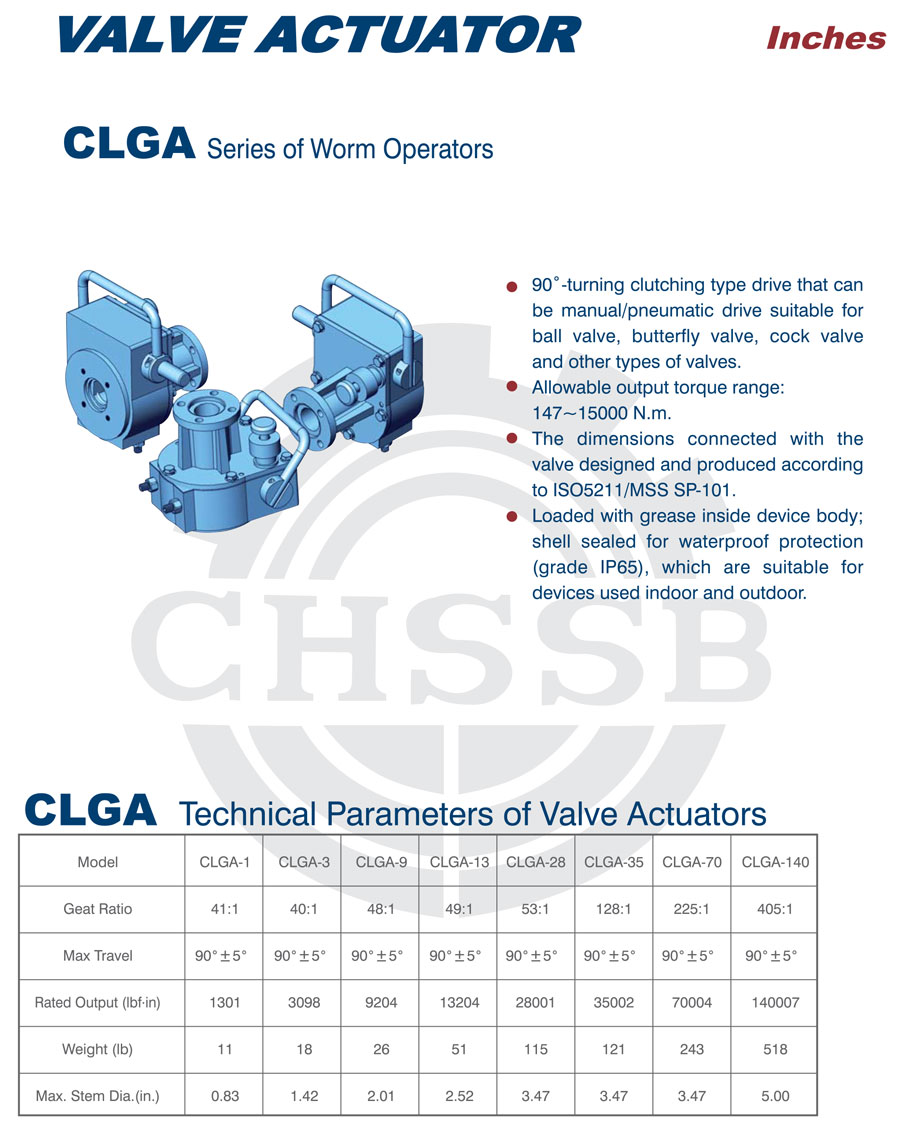

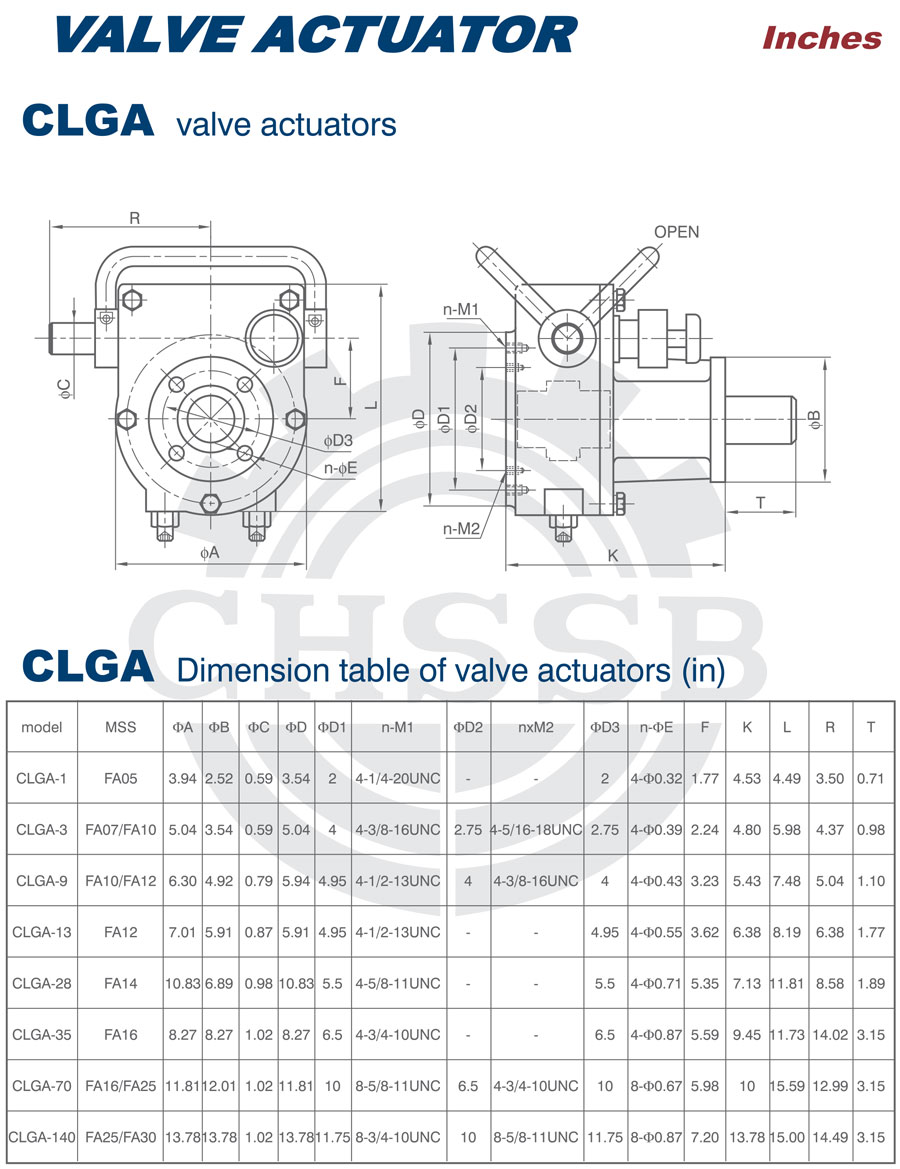

ANSI Catalog:

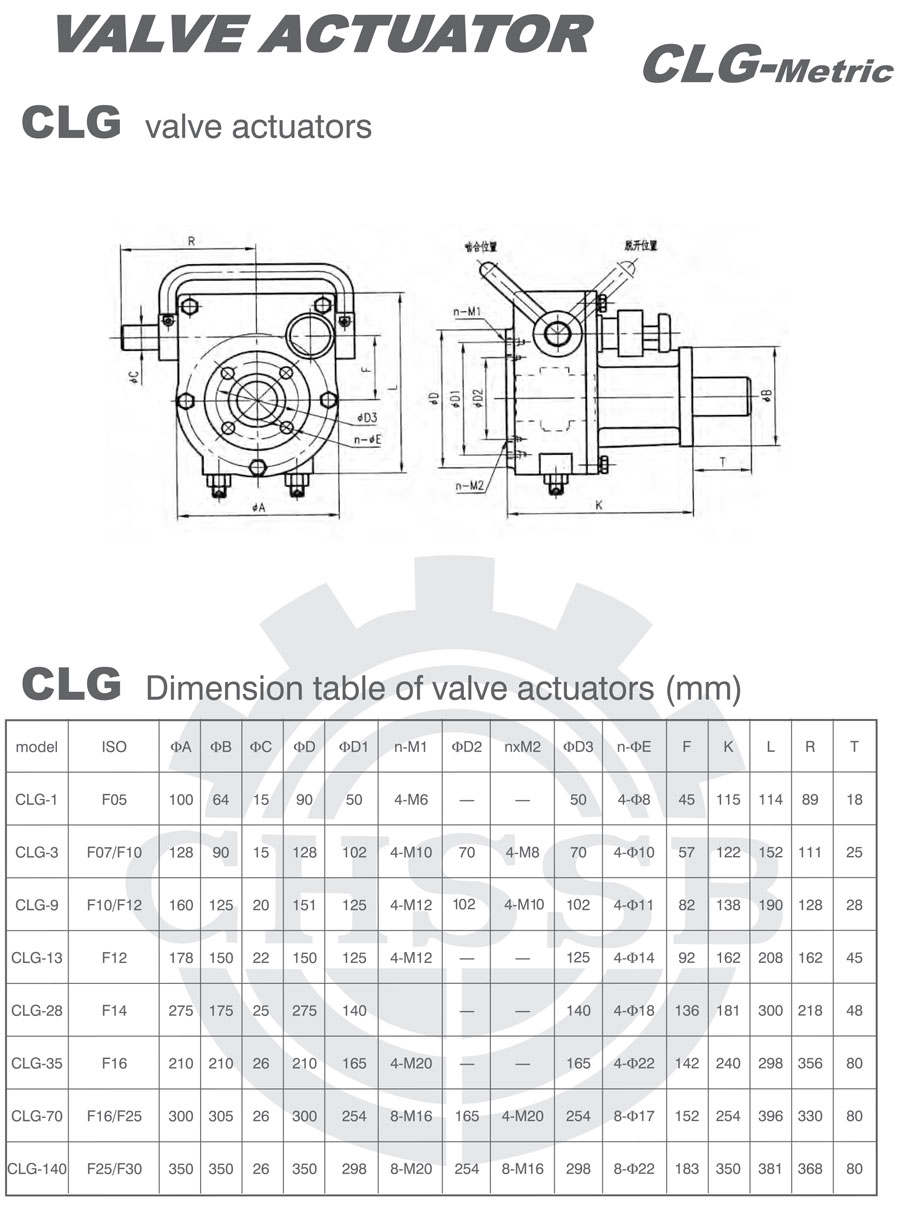

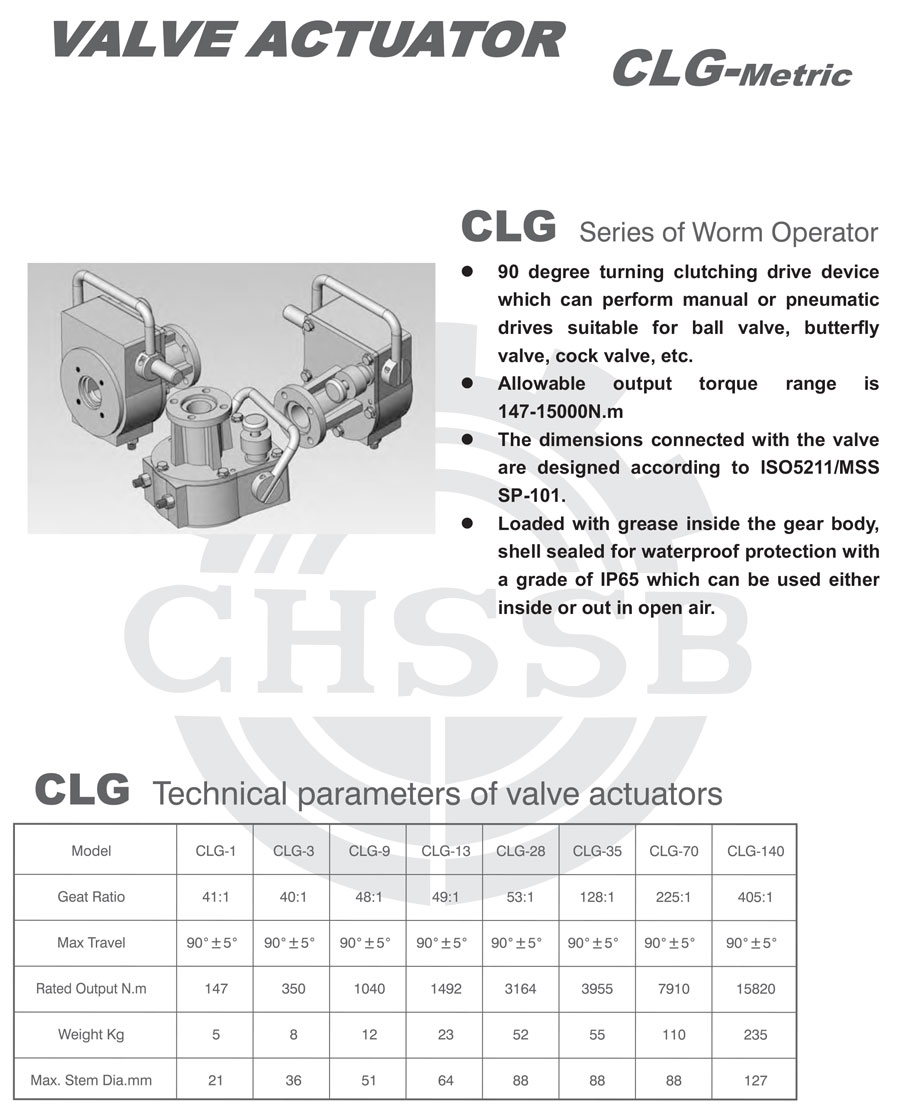

DIN Catalog:
