KC Chain Couplings

Range of product: ANSI:(SB-KC/FB-KC/FB-MC/BTL-MC/QTL-MC/FB-BC/STL-BC) DIN:(KC) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market) KC Chain Couplings

Product Details

Parameters Introduction：

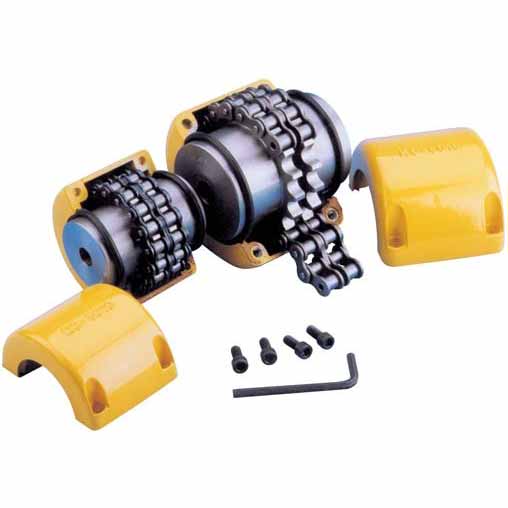

Chain coupling is composed of a duplex roller chain and two sprockets. The function of connection and

detachment is done by the joint of chain. It has the characteristics of simplicity, high efficiency, easy-on

and easy-off and nice outlooking.It also has aluminium cover to prevent dust and protect the lubricant in

order to extend the life of chain coupling.

Product range：

Standards

Series Type

SizeRange

ANSI

SB-KC

KC3012 to KC12022

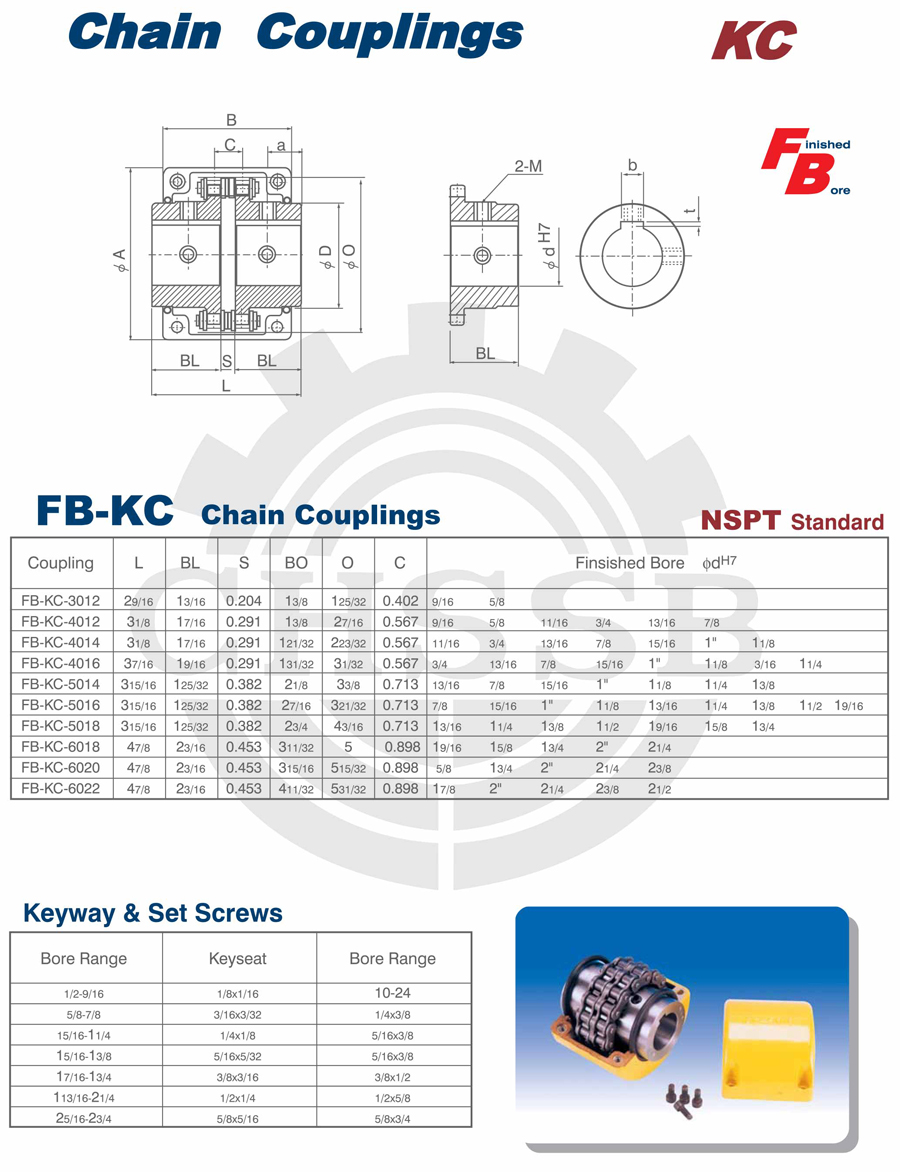

FB-KC

FB-KC3012 to FB-KC6022

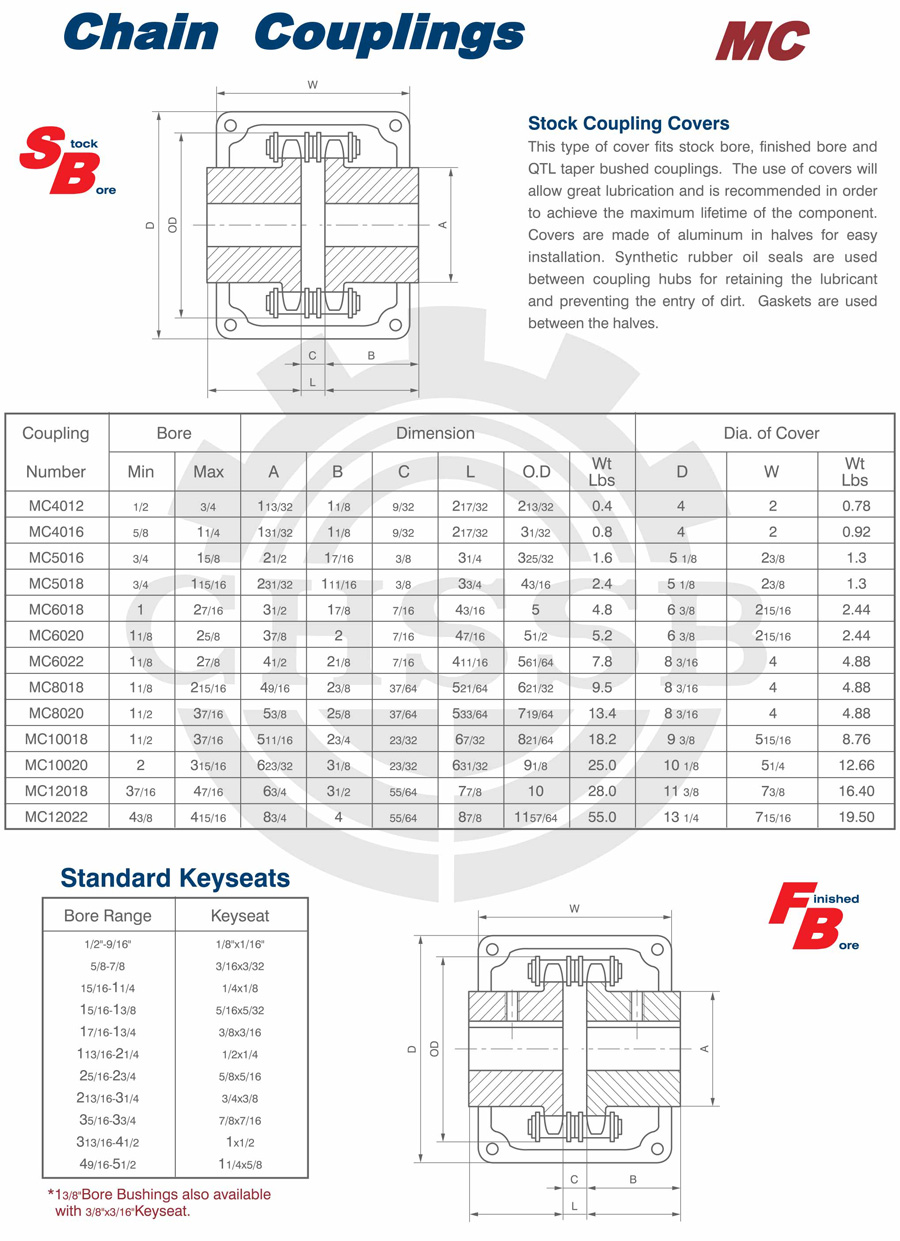

FB-MC

MC4012 to MC12022

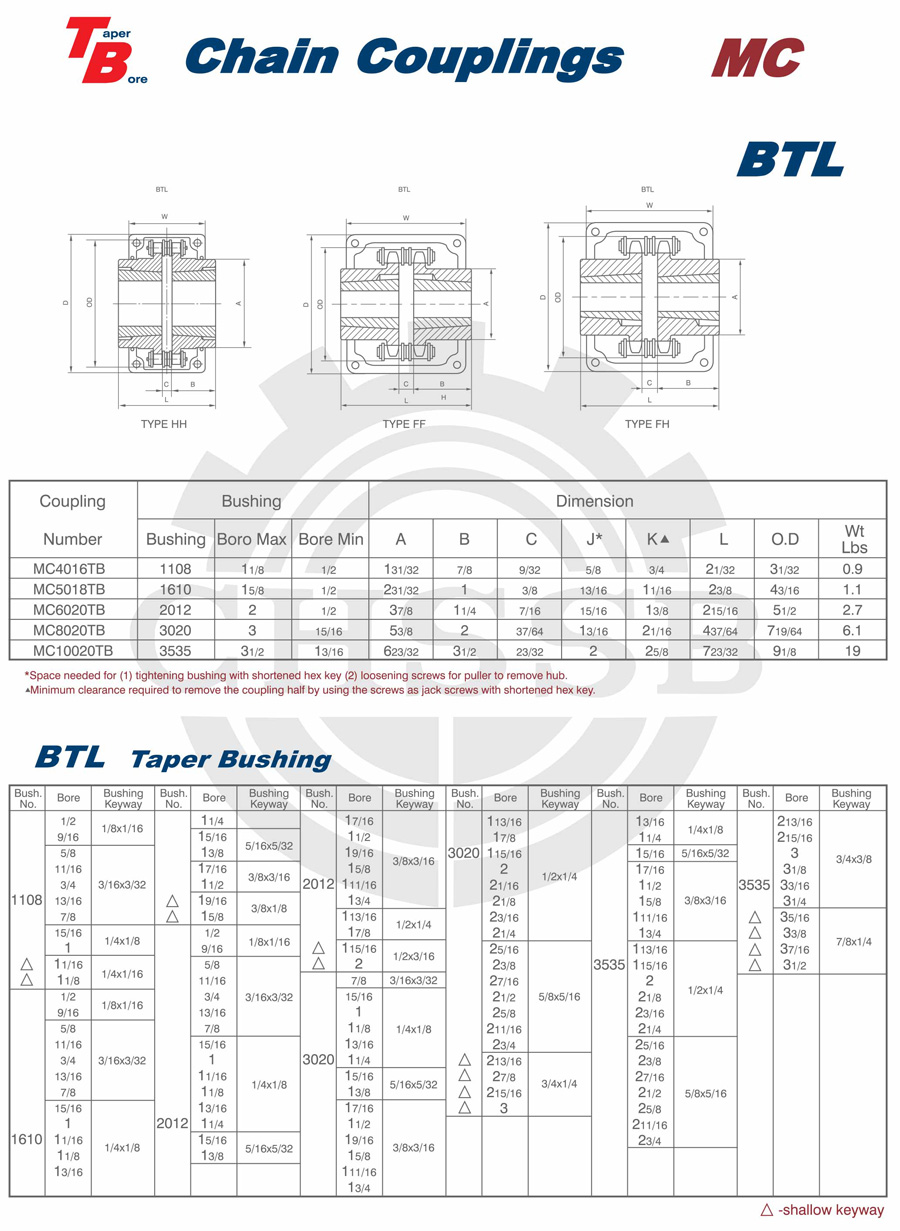

BTL-MC

MC4016TB to MC10020TB

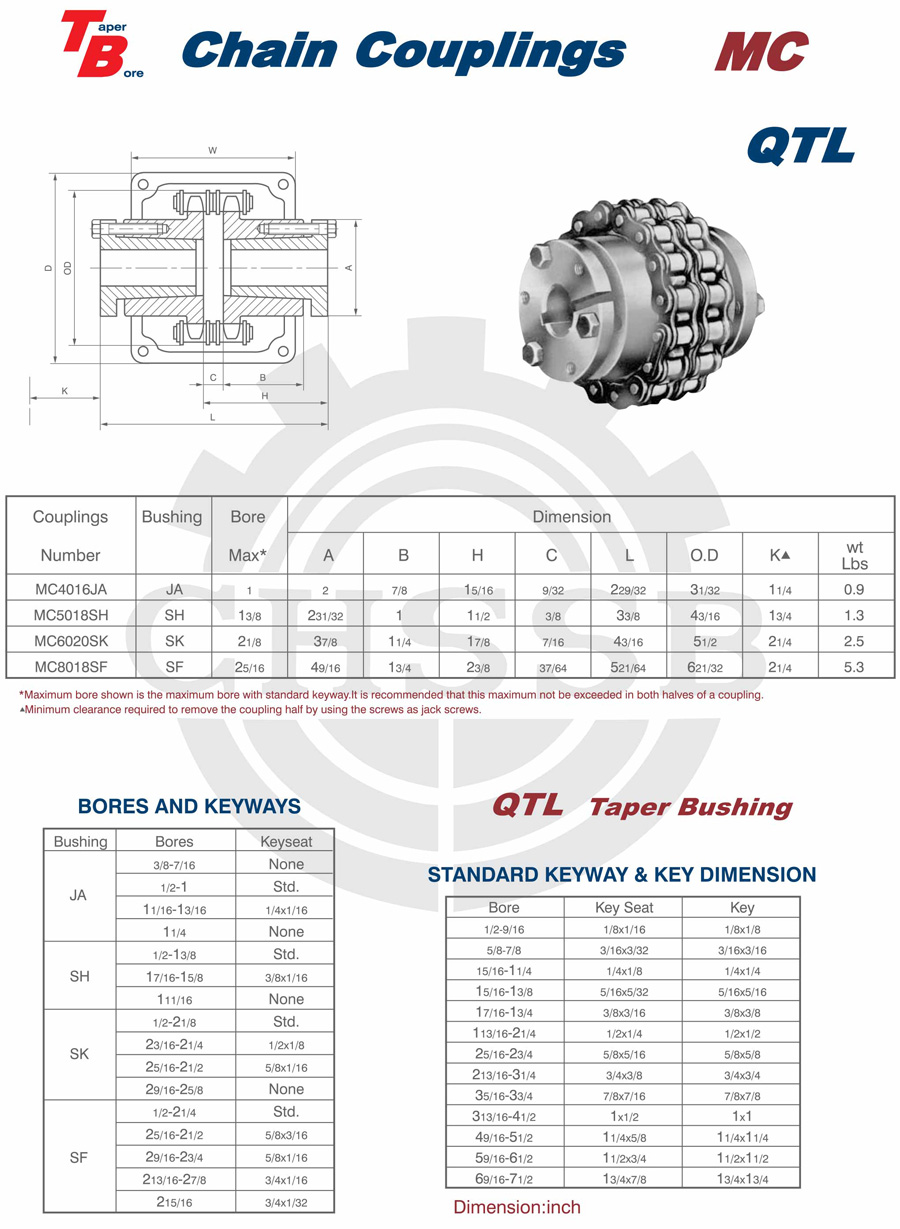

QTL-MC

MC4016JA to MC8018SF

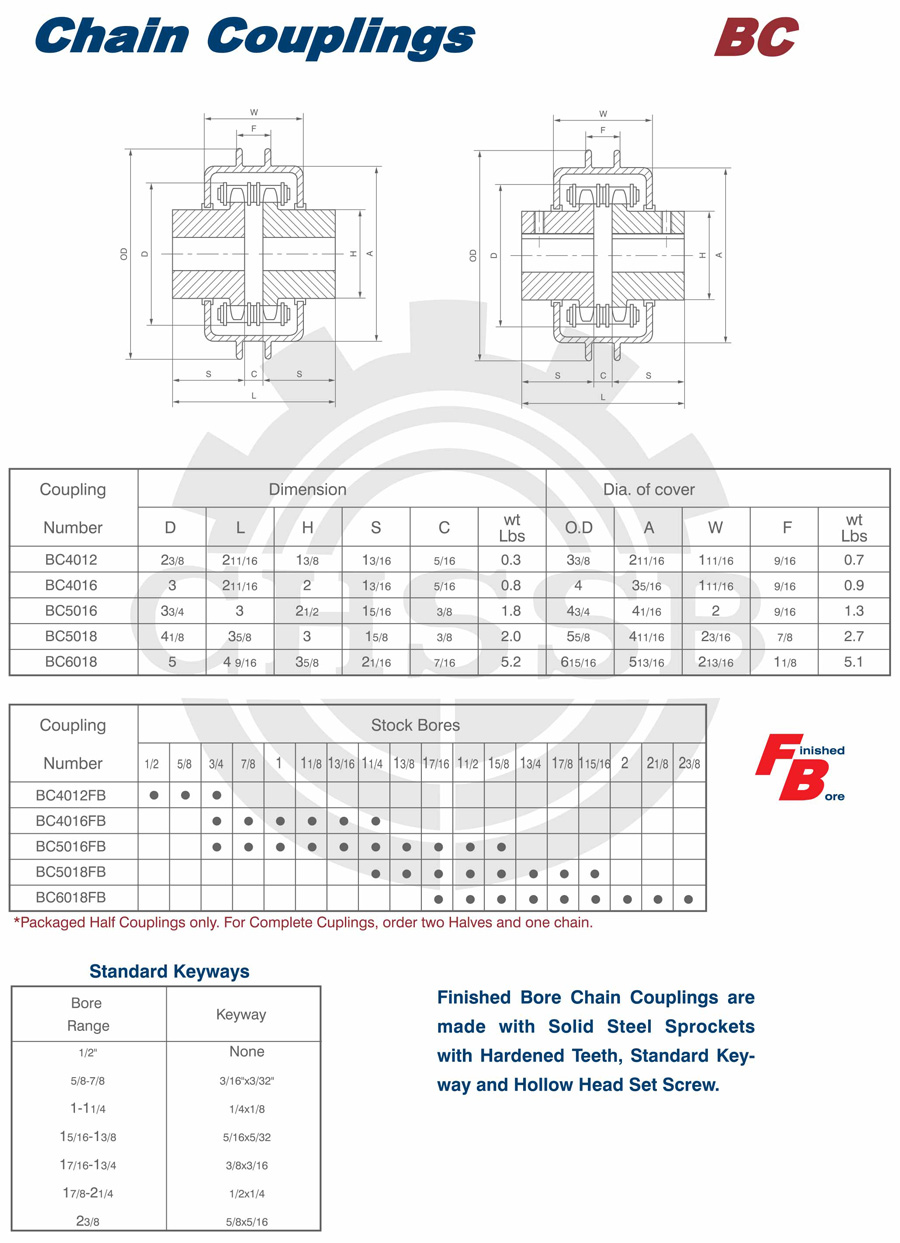

FB-BC

BC4012 to BC6018

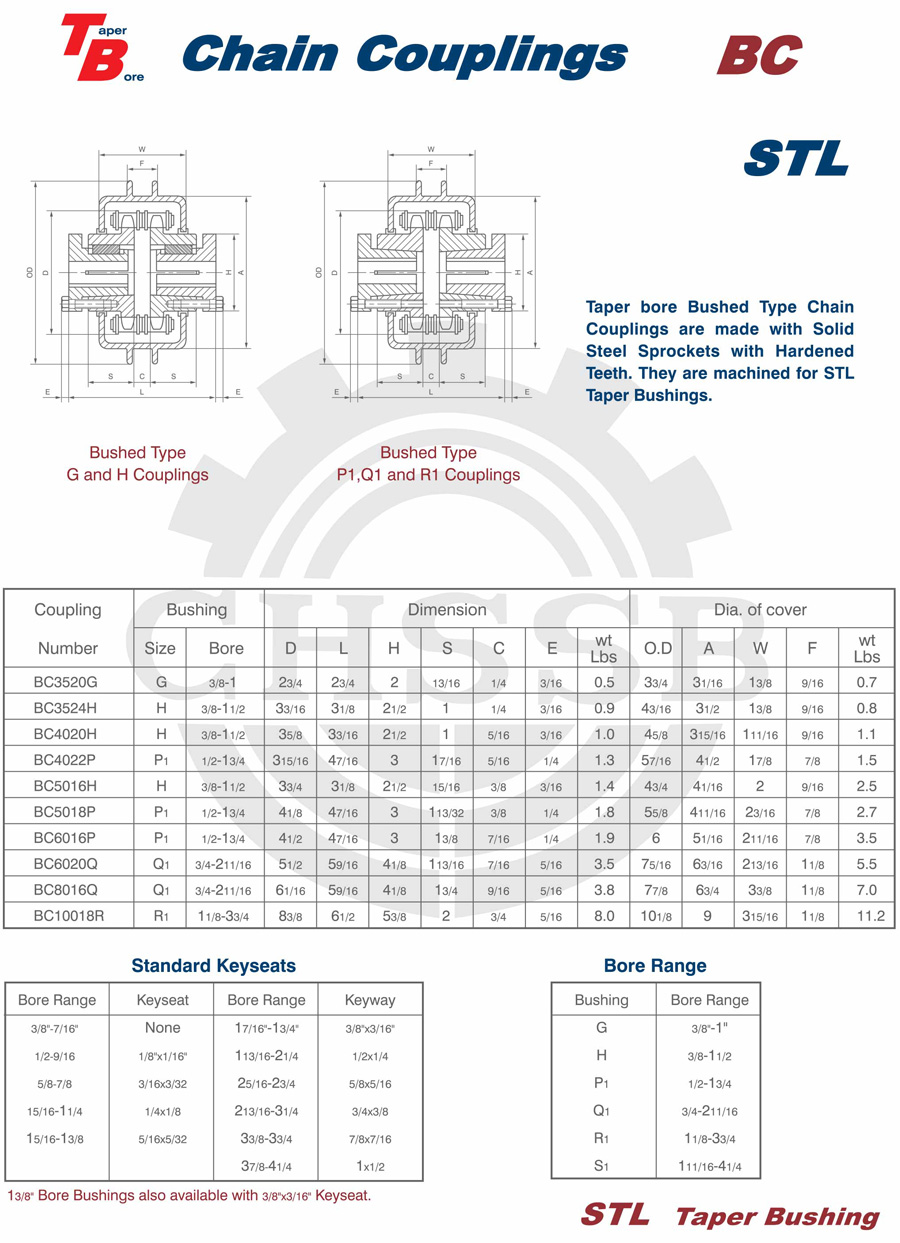

STL-BC

BC3520G to BC11018R

DIN

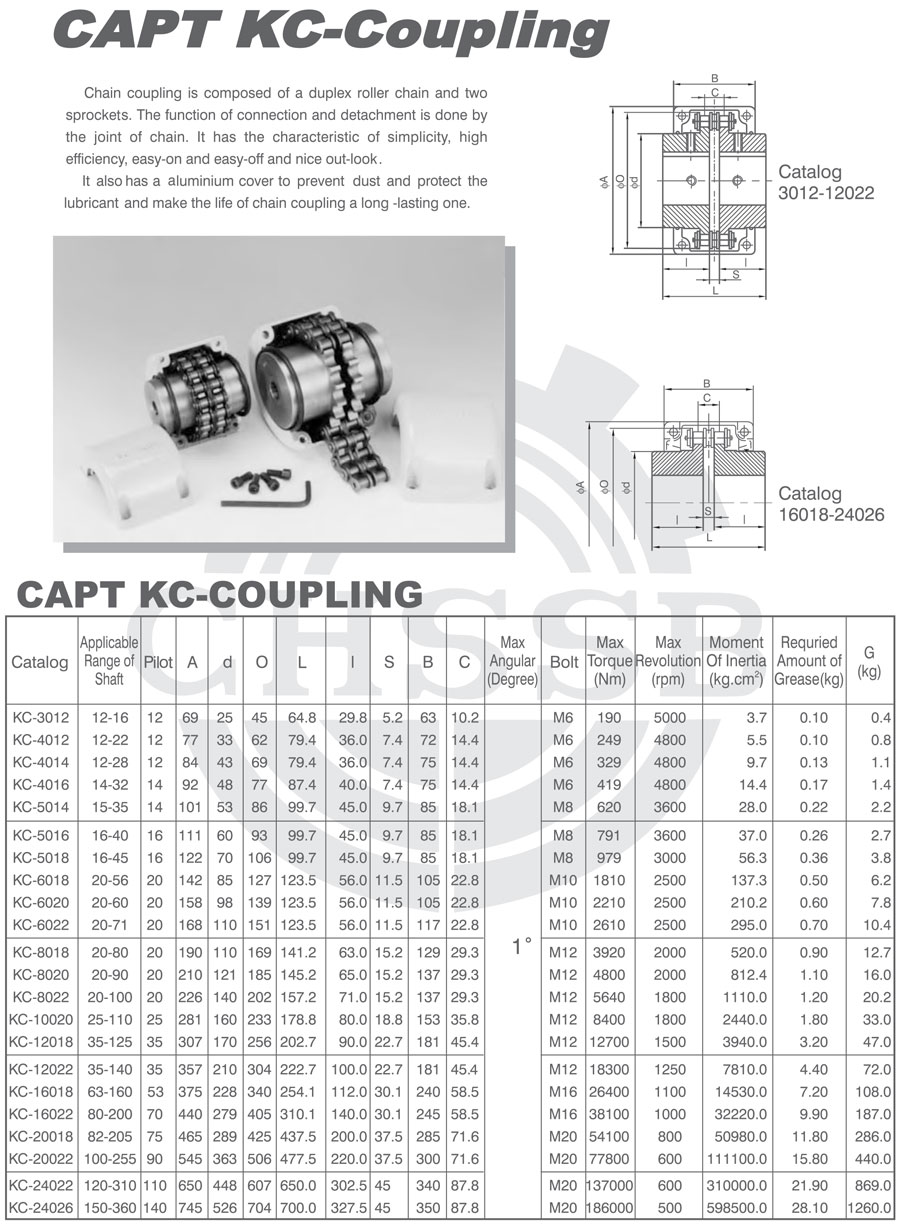

KC

KC3020-KC24026

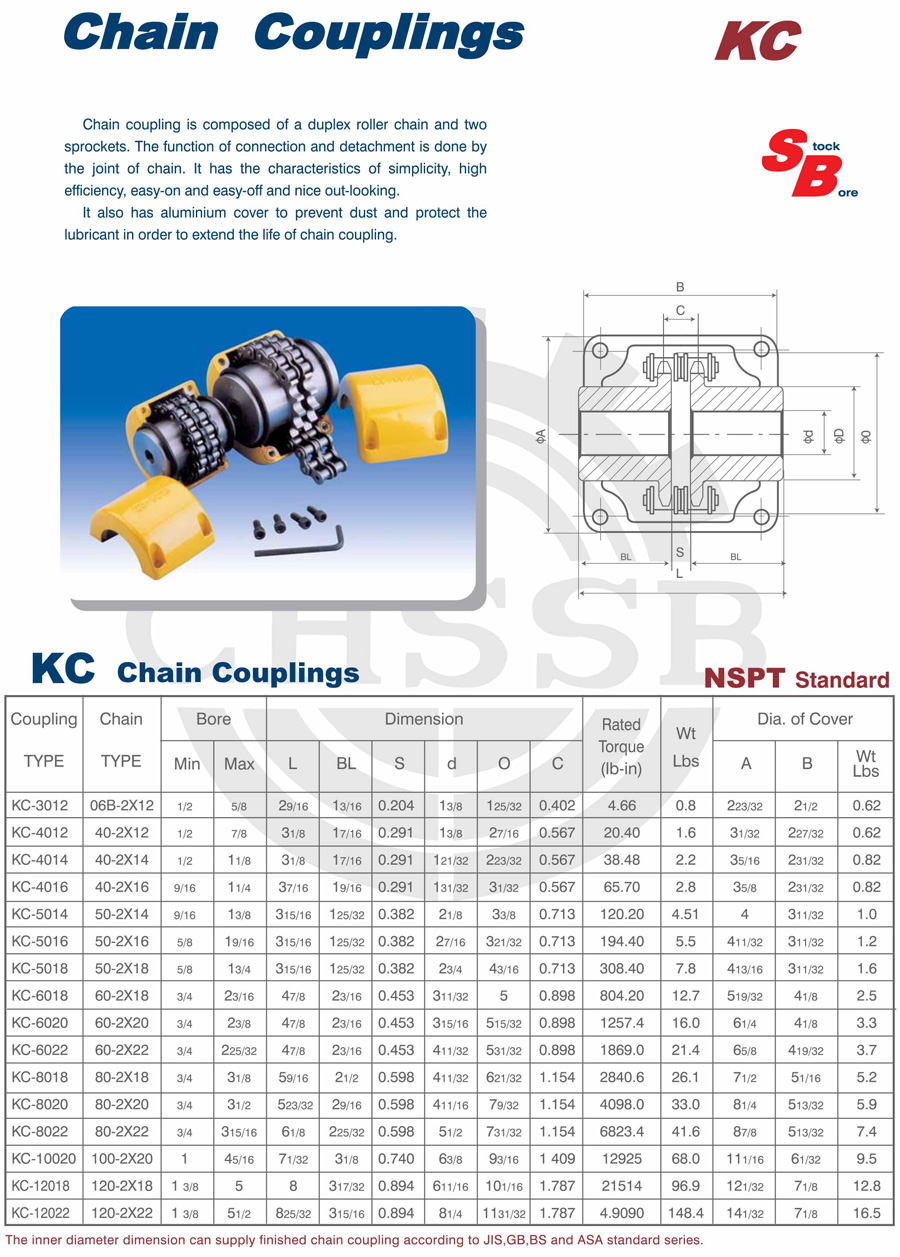

ANSI Catalog:


DIN Catalog:
