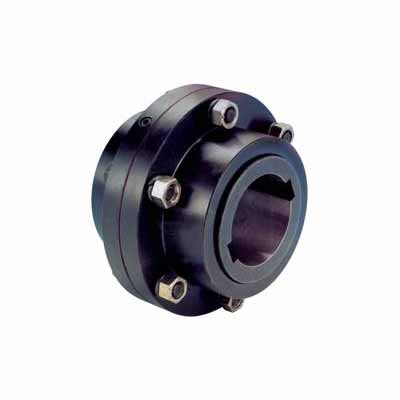

GSL Type Couplings

Range of product: ANSI/DIN:(GSL) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：


On assembly, keyways nust be sealed off to prevent lubricant discharge.1.5 Max angular misalignment per

half coupling keyway dimensions conform to DIN6885,JIS B 1310-1976, UNI 6604-1969,GB 1095-1979

standards.

Product range：

Standards

Series Type

SizeRange

ANSI

GSL

GSL100-GSL700

DIN

GSL

GSL78-GSL400

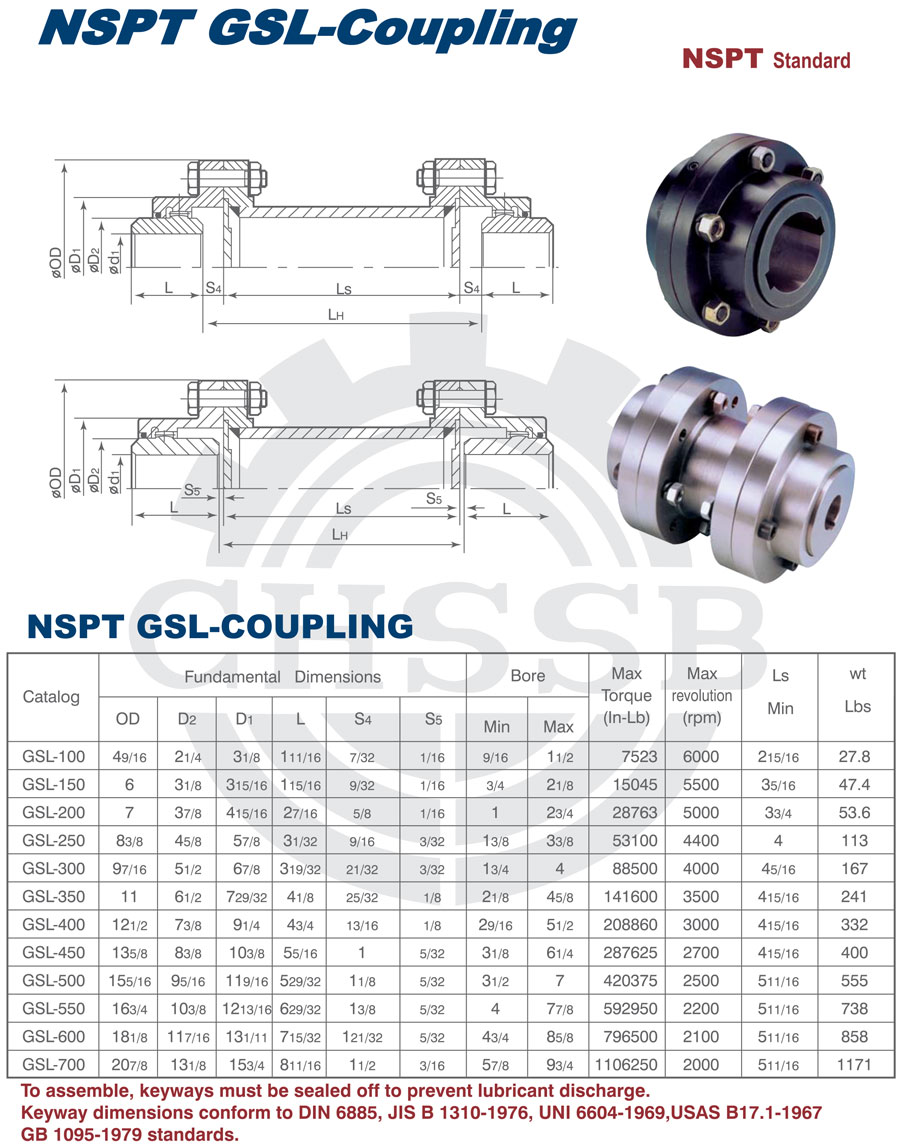

ANSI Catalog:

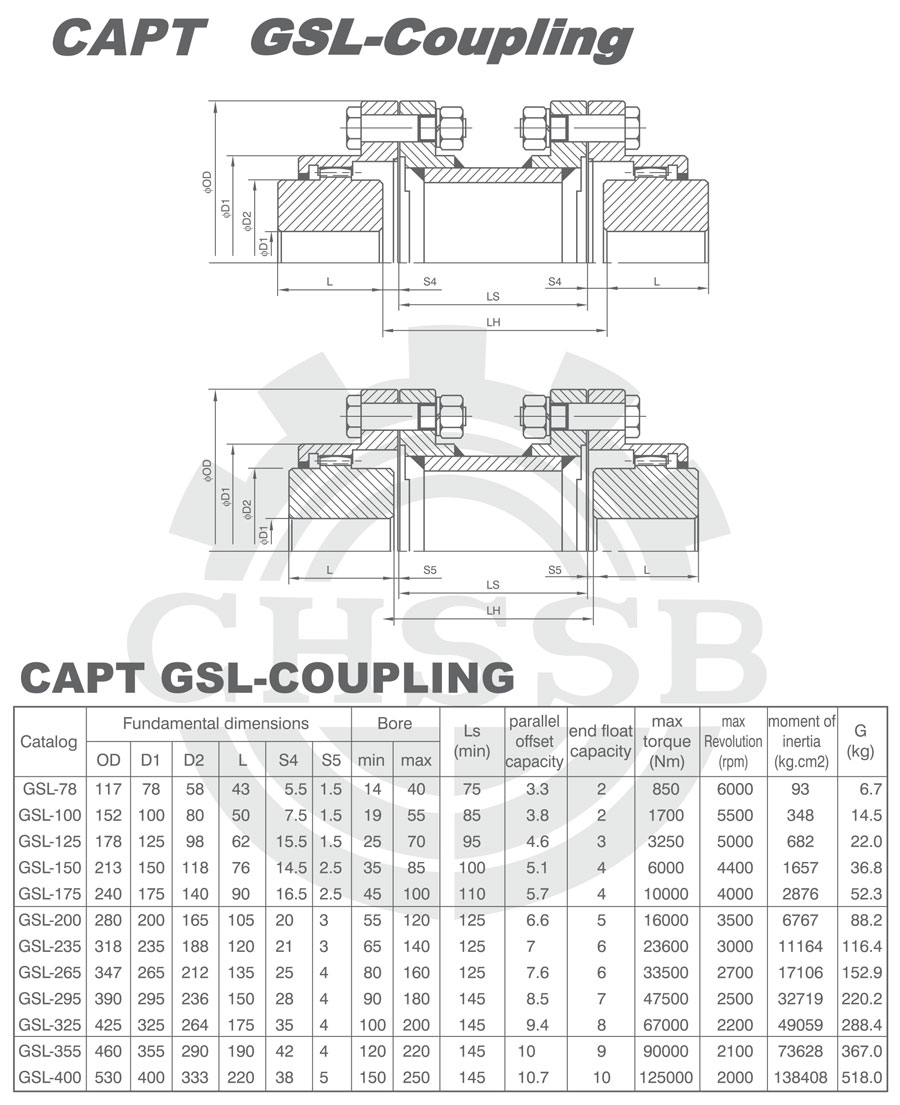

DIN Catalog:
