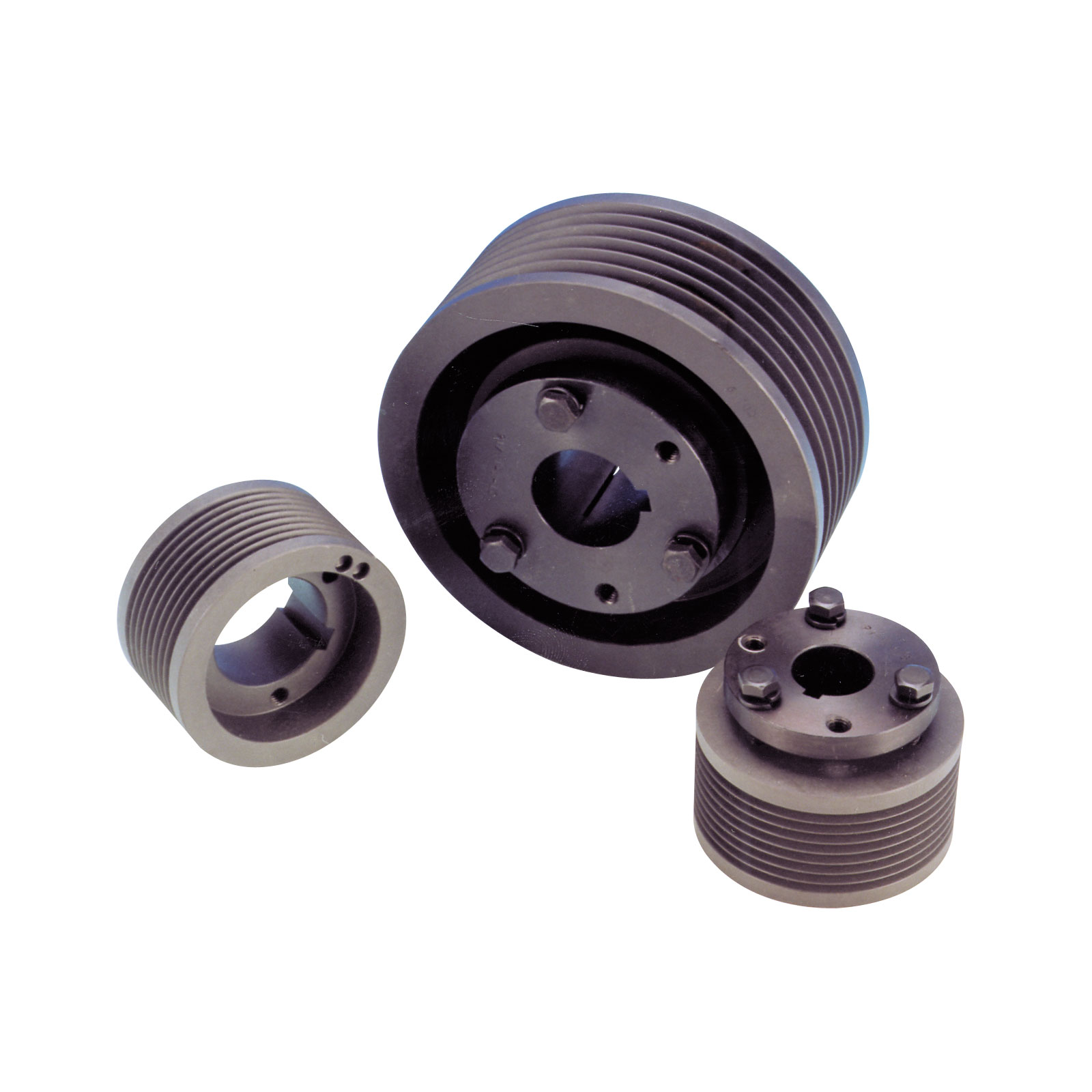

STL Multi-Wedged Poly-V Sheaves

Range of product: ANSI:(J6/J10/J16/L6/L8/L10/L12/L14/L16/ L20/M6/M8/M10/M12/M14/M16/M20) Inch size product (Apply to ANSI market) STL Multi-Wedged Poly-V Sheaves

Product Details

Parameters Introduction：


NSPT supplies the whole series of Multi-Wedged Pulleys (J3-M20) from DP 20mm to710mm.The pulleys

are available in standard straight and in taper lock bores.
Multi-Wedged Pulleys are made of GG25, GGG45,S45C or other materials requested by the customers.

The pulleys are machined by high precise CNC, dynamically balanced and black coated. They have the

characteristics of high precision, steadiness and smooth transmission. They are suitable for all kinds of

precise, high speed and heavy loaded transmission equipments. They can also be used on auto motors.
NSPT can provide specially designed Multi-Wedged Pulleys according to customers' requests.

Product range：


Standards

Series Type

SizeRange

ANSI

J6

6J20G-6J190Q

J10

10J20G-10J190Q

J16

16J25G-16J190Q

L6

6L30P-6L300Q

L8

8L30P-8L300Q

L10

10L30P-10L300Q

L12

12L30P-12L300Q

L14

14L54Q-14L300R

L16

16L54Q-16L300R

L20

20L54Q-20L300R

M6

6M70Q-6M440R

M8

8M70Q-8M440R

M10

10M70Q-10M440R

M12

12M90R-12M440R

M14

14M90R-14M440S

M16

16M90R-16M440S

M20

20M90R-20M440S

ANSI Catalog：ANSI STL Multi-Wedged Poly-V Sheaves.pdf
