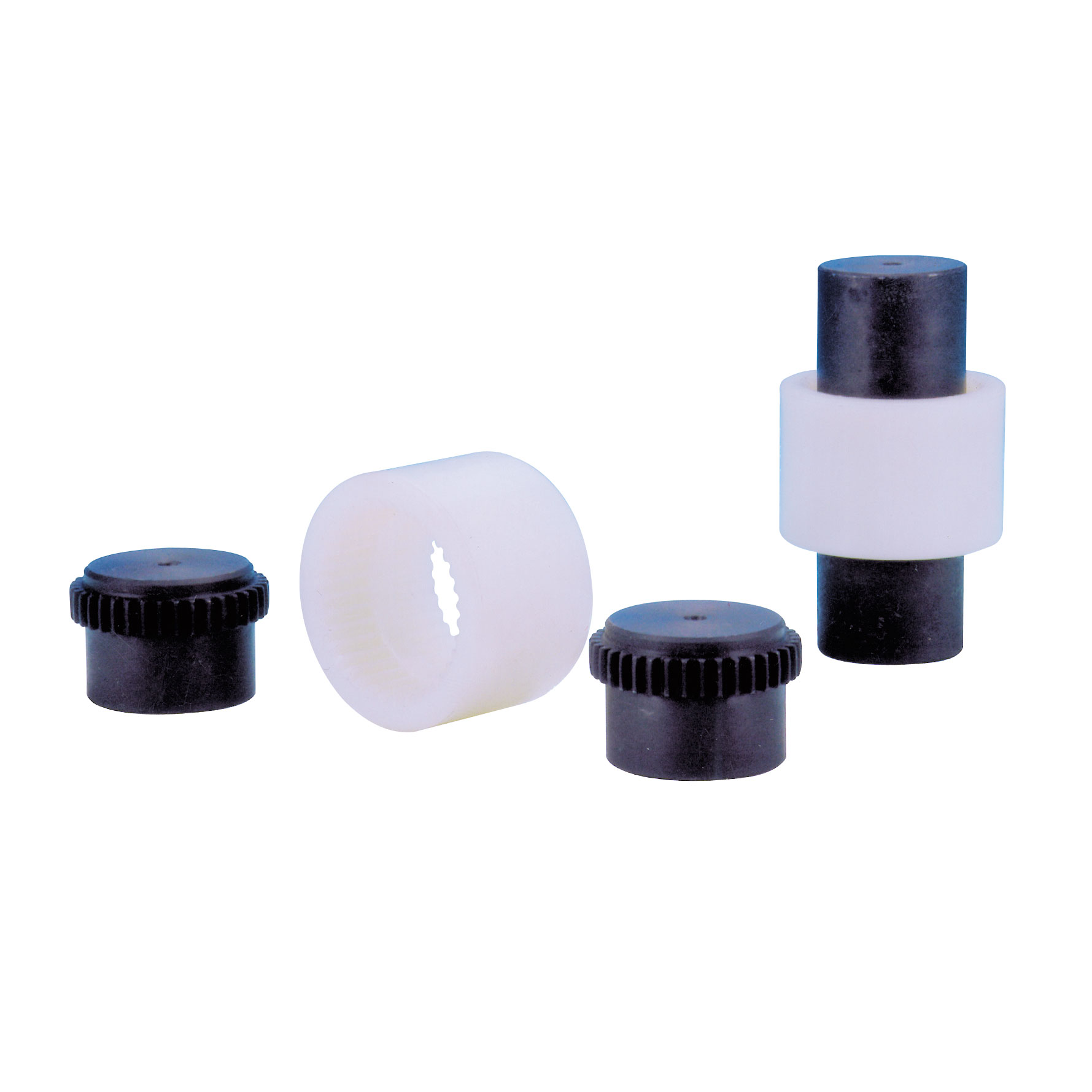

GF Type Couplings

Range of product: ANSI:(GF14-GF65;GF14L-GF65L) DIN:(GF14-GF65;GF14L-GF65L) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：

GF tooth coupling are widely used in variety mechanical engineering and hydraulic field.Stutable for

horizontal and vertical installation.Axial shaft inserting assembly,which is very convenient for users.

Adopting curver surface drum type tooth to avoid focal of stress when instrallation tolerances happen.

Steel gear and nylon teeth sheath assembled together to avoid maintenance,which is capable to

compensate axial,radial and angular tolerance in term of two shaft lines.

Product range：

Standards

Series Type

SizeRange

ANSI/DIN

GF

GF14-GF65

GF-L

GF14L-FG65L

ANSI Catalog:ANSI GF Type Couplings.pdf
DIN Catalog:DIN GF Type Couplings.pdf
