Home > Product > Product Detail
Product Detail
      1. CG Series of Worm Operators
      2. CFP Series of Worm Operators
      3. CWG Series of Worm Operators
      4. BG Series of Bevel Gear Operators
      5. CBG Series of Bevel Gear Operators
      6. CB Series of Bevel Gear Operators
      7. CLG Series of Bevel Gear Operators
      8. CPR Series of Bevel Gear Operators
      9. Handwheels for Gear Operators

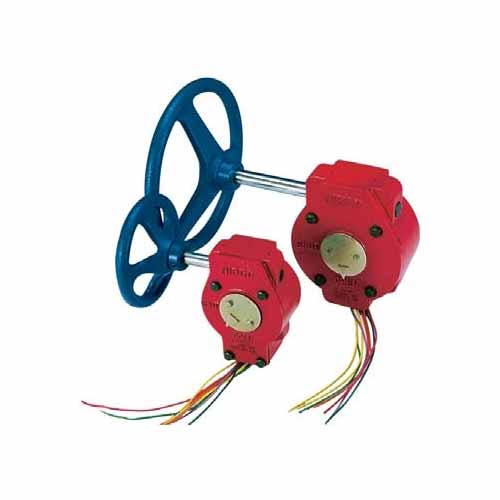

CFP Series of Worm Operators

Range of product: ANSI:(CFPA) DIN:(CFP) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：

●90 degree turning clutching drive device with micro active switch installed inside suitable for connecting

with ball valve, butterfly valve,etc. used in the fire fighting field.

●Permitted output torque range is 270-700N.m

●Hand wheel can be equipped from both sides:left and right.

●The dimensions connected with the valve are designed according to IS05211/MSS SP-101.

●Loaded with grease inside the gear body, shell sealed for waterproof protection with a grade of IP65

Product range：

Standards

Series Type

SizeRange

ANSI

CFPA

CFPA24-CFPA30

DIN

CFP

CFP24-CFP30

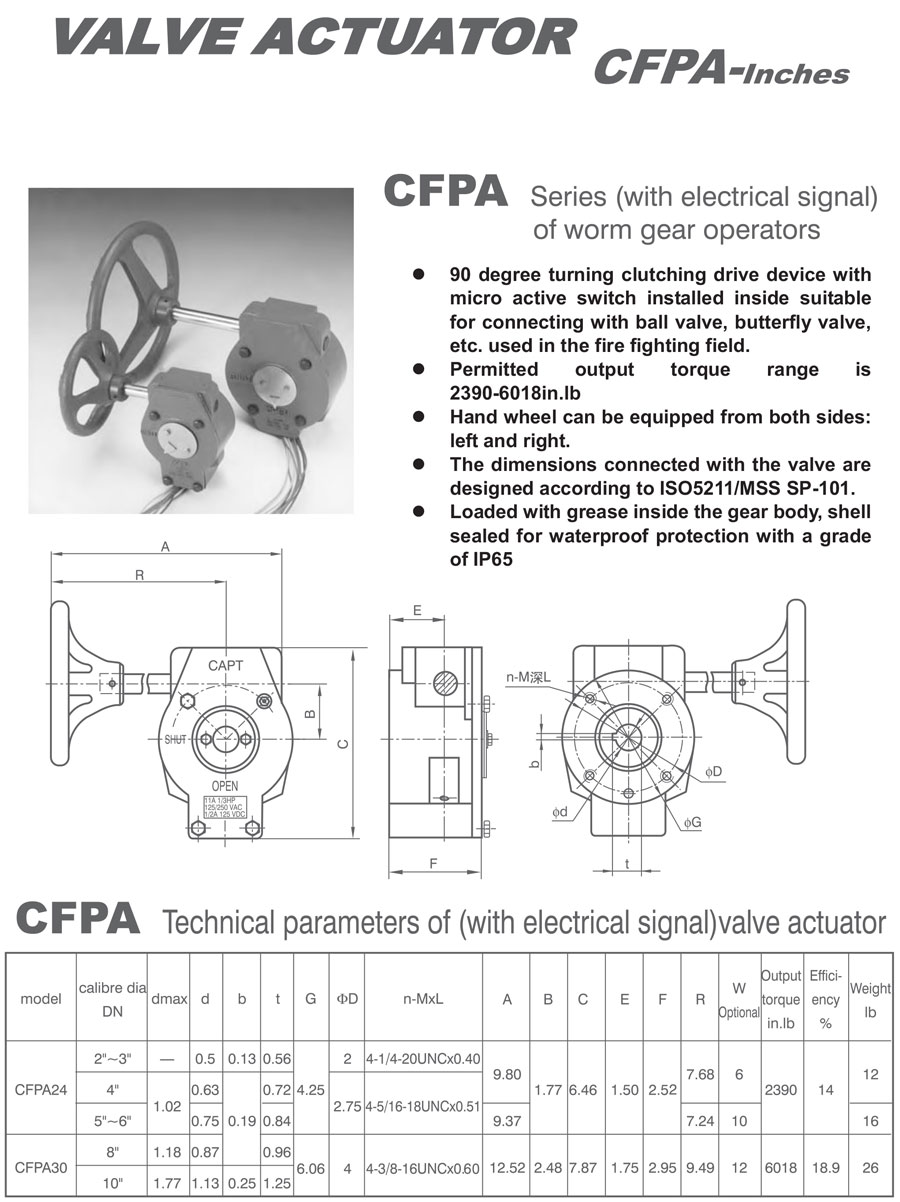

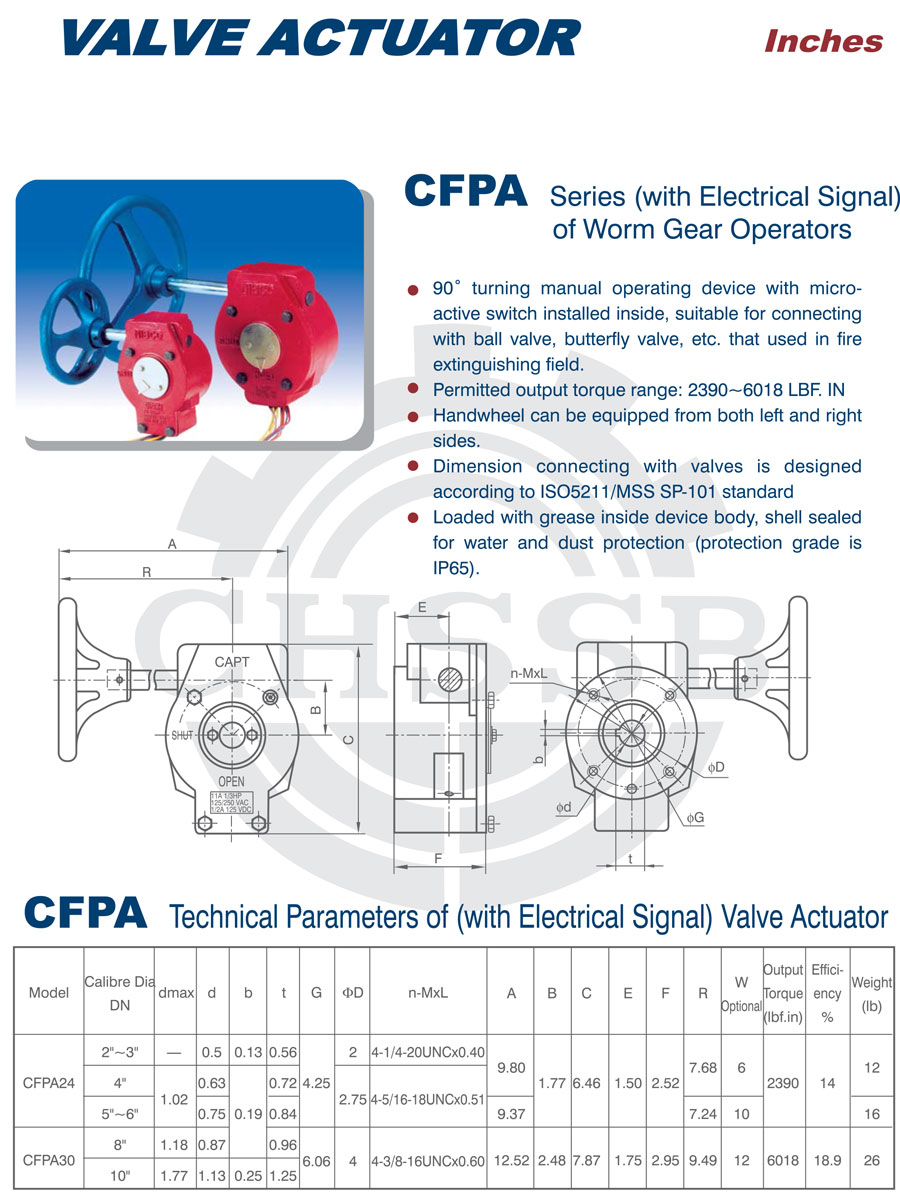

ANSI Catalog:

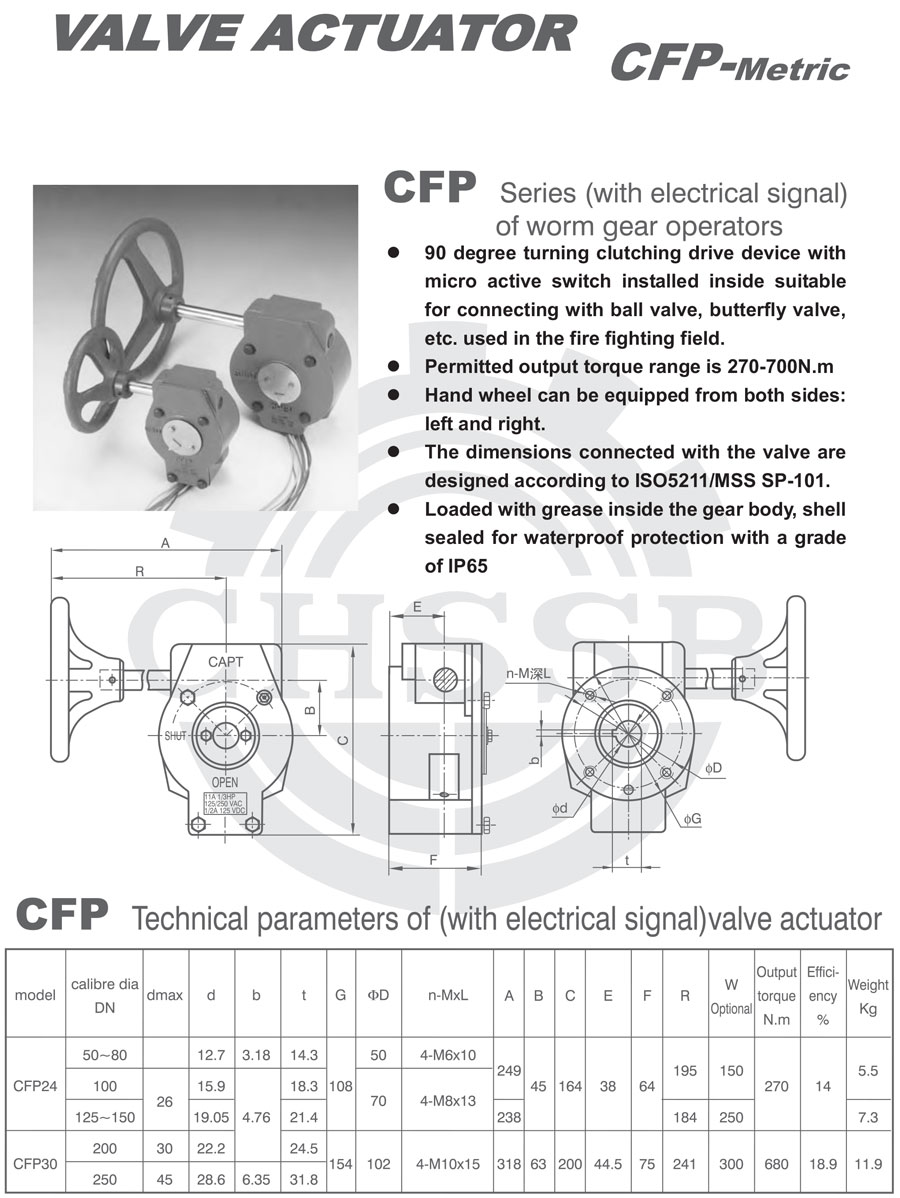

DIN Catalog:
